An ASD consists of one or two independent sampling tubes with sampling apertures, and with a highly sensitive smoke sensor in each case.
Airflow monitoring ensures that the sampling tubes are constantly checked for pipe breakage and the sampling apertures monitored for soiling. A high-performance fan sucks in air from the room or facility being monitored through the sampling tube into the evaluation unit.
There the air is continuously evaluated by the smoke sensors. The display and control panel of the evaluation unit indicates the smoke concentration of the sampled air, as well as other alarm, fault and status messages. Any increase in smoke concentration levels is detected very early on.
Pre-signals and one or two main alarms can be programmed, and signalled via potential-free relay contacts or directly to the SecuriLine loop.

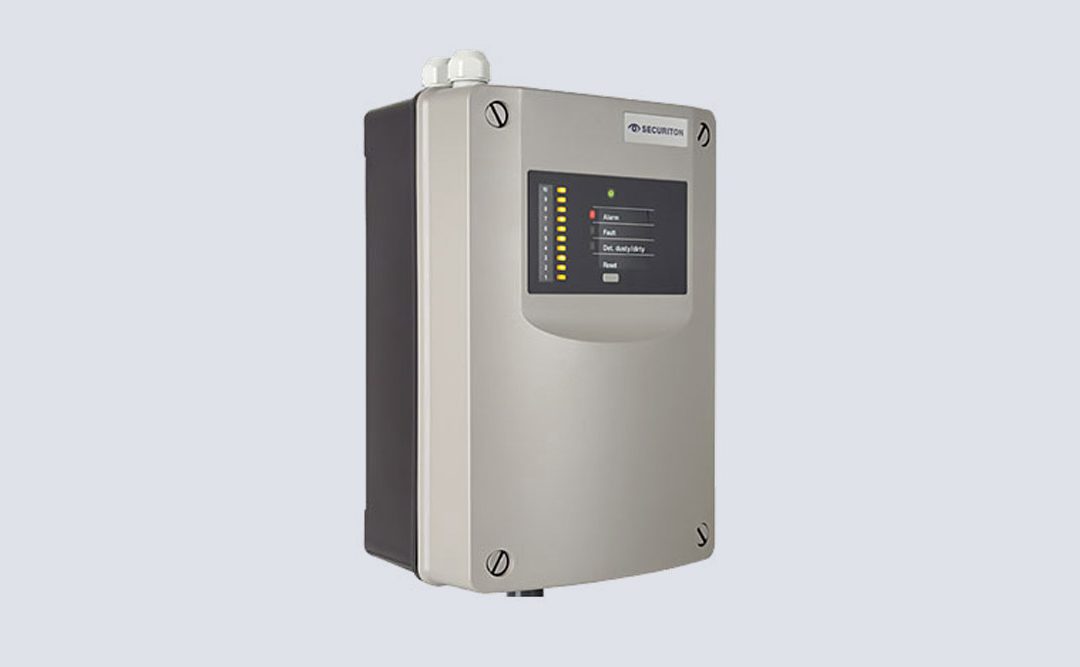

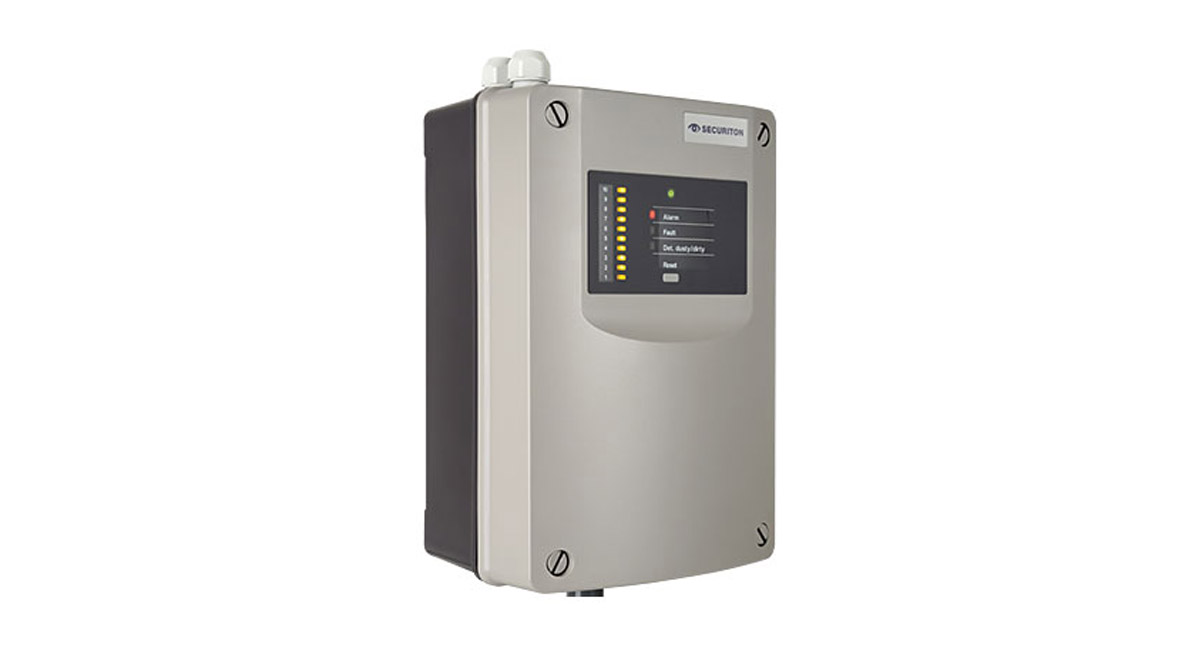

Universal aspirating smoke detector for medium-sized and small monitoring areas.
| Channels | 1 |
| Smoke sensor | High-sensitivity smoke sensor with high-power LED, LVSC smoke chamber and patented lint filter |
| Monitoring area | 1280 m2 |
| Direct integration in SecuriFire fire detection system | Yes, with XLM-35 module (alarm, pre-signal, faults, day/night sensitivity switching, reset etc.) |
| Smoke level indicator | series |
| Programming (PC tool) | ASD Config |
| Configuration | EasyConfig |
| Calculation of sampling pipes | ASD PipeFlow |
| Applications | Elevator shafts, prison cells, clean rooms, laboratories, IT racks, telecommunications facilities, ect. |
| Supply voltage range | En 54 : 14.0 – 30 VDC FM/UL : 16.4 – 27 VDC |
| Power consumption Typical for 24 VDC | 115 mA |
| Sampling tubes/smoke sensors | 1 |
| Alarm sensitivity | Alarm : 0.02 –10%/m (0.00087–0.457 dB/m) Pre-signal:0.002%/m (0.0000869 dB/m) |
| Alarm levels | 5 (3 pre-signals, alarm, alarm 2) adjustable pre-signals 10 – 90% |
| Autolearning, day/night switching | Configurable |
| Connection to SecuriFire FACP | Functions: Alarm, alarm 2, pre-signal 1– 3, fault, reset Optional module :XLM 35 Config over Line, analogue values |
| Optional modules | Quantity:2 Types: 2/1 RIM 36 (only RIM 36) XLM 35, SIM 35 |
| Number of sampling apertures | EN 54-20 Class A:8 EN 54-20 Class B:12 EN 54-20 Class C:16 NFPA 72 (UL/FM):16 |
| Max Monitoring area | 1280 m2 |
| System limits as per EN 54-20 Class C | Max. quantity Sampling apertures: 16 Max. length to last sampling point : 70m Max. overall length for all sampling tubes: 120m |
| System limits without conformity to standards | Max. overall length for all sampling tubes: - |
| Configuration | Close operation: EasyConfig PC tool: ASD Config |
| Calculation of sampling tubes | ASD PipeFlow: • Full support for all product versions • Asymmetrical configurations • Genuine simulation, no table values |
| Fan/sampling system | Suction pressure:> 180 Pa Service life (MTTF):> 80,000 h (at 40 °C) Performance levels:3 Suction noise: < 32 dB (A) Soundproof housing:< 20 dB (A) |
| Airflow monitoring | 1 air flow sensor |
| Housing | EN 60529 prot. category : IP 54 Dimensions (W × H × D) : 195 × 290 × 140 mm Cover, grey:RAL 280 70 05 Base, anthracite violet:RAL 300 20 05 Material: ABS blend, UL 94-V0 Weight (approx.):1950 g Cable entries:3 × M20, 1 × M25 |
| Packaging | Cardboard (W × H × D) : 355 × 215 × 160 mm |
| Operating temperature/humidity | –20 – +60°C/95% RH (amb. air max. 40 °C) |
| Event memory/analogue values | On board:1000 events With SD Card: up to 1 year |
