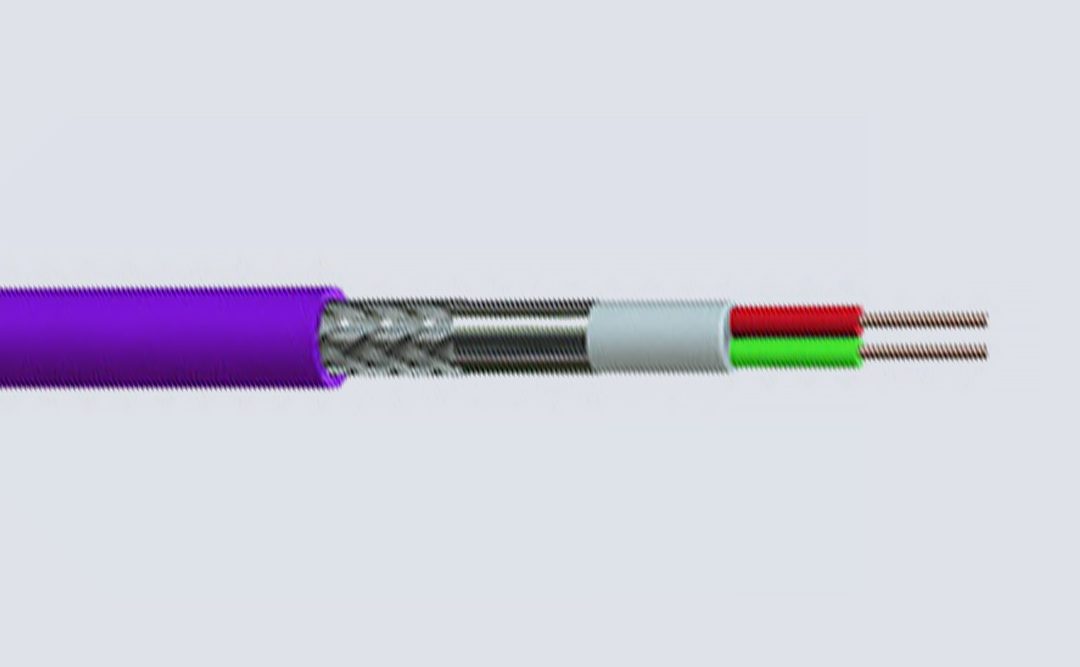

Bus Cable

Communication, Network Cable

Cables Include:

DeviceNet
Fieldbus
Hart(Bus)
KNX/EIB
Profibus
Profinet

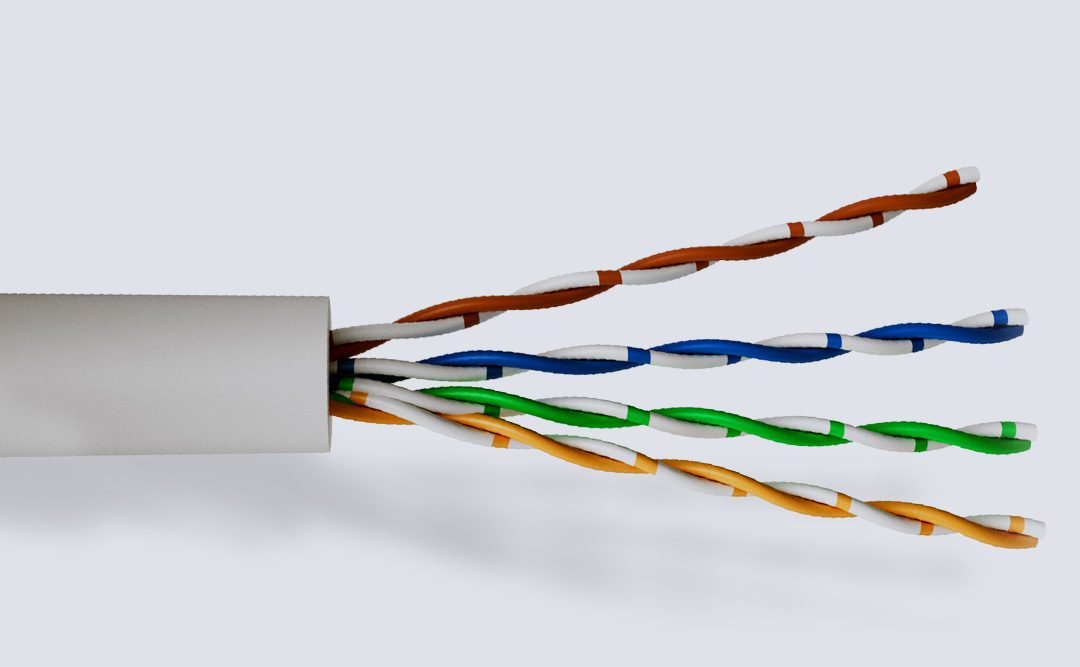

Local Area Network Cable

Communication, Network Cable

Cables Include:

Cat 6
Cat 6A
Cat 7

CAT 5E

Internal telephone cables.

Cat 5E 25 Pair U/UTP PE Duct Grade Cable

Cat 5E 25 Pair U/UTP LSZH Cable

Cat 5E F/UTP PVC Cable

Cat 5E U/UTP PVC Cable

Cat 5E U/UTP PE External Cable

Cat 5E F/UTP PE Cable

Cat 5E F/UTP LSZH Cable

Cat 5E PE F/UTP GSWB LSZH Cable

Cat 5E U/UTP SWA LSZH Cable

Cat 5E U/UTP LSZH Cable

Cat 6 F/UTP PE Cable

Cat 6 U/UTP PE Cable

Cat 6 U/UTP LSZH Cable

Cat 6A U/FTP LSZH Cable

Cat 6 F/UTP LSZH Cable

Cat 7 S/FTP 4 Pair LSZH Cable

AS-I BUS Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Class 6 Stranded Tinned Copper Wires
Insulation	TPE (Thermoplastic Elastomer)
Sheath	TPE (Thermoplastic Elastomer)

Dimensions

No. of Cores	Nominal Cross Sectional Area mm²	Nominal Insulation Diameter mm
2	1.5	2.5

Electrical Characteristics at 20°C

Maximum Conductor Resistance mohms/m	Capacitance at 167kHz pF/m	Inductance at 167kHz nH/m	Impedance at 167kHz ohms
13.7	35 to 45	520 to 700	70 to 140

Profinet Type A Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	LSZH (Low Smoke Zero Halogen)
Bedding	LSZH (Low Smoke Zero Halogen)
Screen 1	AL/PET (Aluminium/Polyester Tape)
Screen 2	TCWB (Tinned Copper Wire Braid)
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs	Nominal Conductor Diameter mm² (AWG/Strands)	Nominal Insulation Diameter mm	Nominal Bedding Diameter mm	Nominal Overall Diameter	Nominal Weight kg/km
2	0.34 (22/1)	1.43	4.2	6.5	74

Electrical Characteristics

Maximum DC Conductor Resistance Ω/km	Capacitance pF/km		Minimum Insulation Resistance GΩ x km	Impedance Ω	Nominal Propagation Velocity %	Delay Skew ns/100m	Dielectric Strength kVac / 1 min
	Core/Core	Unbalanced					Core/Core	Unbalanced
56.4	52	1600	5	100	67	50	1.5	1

Profibus PA PVC Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Solid Bare Copper Wire (18/1AWG)
Insulation	Solid PE (Polyethylene)
Bedding	PET (Polyester Tape)
Filler	PET (Polyethylene Terephthalate) Fibres
Shield	AL/PET (Aluminium / Polyester Tape)
Sheath	PVC (Polyvinyl Chloride)
Braid	TCWB (Tinned Copper Wire Braid) 60% Coverage

Dimensions

No. of Pairs	Nominal Cross Sectional Area mm²	Nominal Conductor Diameter mm	Nominal Insulation Diameter mm	Nominal Outer Diameter of Filler Sheath mm	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
1	0.85	1.04	2.5	5.5	7.6	89

Electrical Characteristics at 20°C

Maximum DC Conductor Resistance Ω/km	Capacitance at 800Hz pF/km	Impedance (3÷20MHz) Ω (±10%)	Impedance Ω			Attenuation dB/km
			31.25kHz	39kHz	1MHz	Maximum at 39kHz	Nominal at 100kHz	Nominal at 1MHz
22	60	150	100	100	80	3	4	15

Inductance at 31.25KH mH/km	Dielectric Strength kVac / 1 min		Minimum Insulation Resistance GΩ x KM	Transfer Impedance mΩ/M		Maximum Installation Pulling N
	Conductor/Conductor	Conductor/Shield		100kHz	1MHz
0.7	2.5	2.5	5	15	10	120

Profibus PA FRNC-LSZH Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Solid Bare Copper Wire (18/1AWG)
Insulation	Solid PE (Polyethylene)
Bedding	PET (Polyester Tape)
Filler	Halogen Free Compound
Shield	AL/PET (Aluminium / Polyester Tape)
Sheath	FRNC LSZH (Low Smoke Zero Halogen) Compound
Braid	TCWB (Tinned Copper Wire Braid) 60% Coverage

Dimensions

No. of Pairs	Nominal Cross Sectional Area mm²	Nominal Conductor Diameter mm	Nominal Insulation Diameter mm	Nominal Outer Diameter of Filler Sheath mm	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
1	0.85	1.04	2.5	5.5	7.6	89

Electrical Characteristics at 20°C

Maximum DC Conductor Resistance Ω/km	Capacitance at 800Hz pF/km	Impedance (3÷20MHz) Ω (±10%)	Impedance Ω			Attenuation dB/km
			31.25kHz	39kHz	1MHz	Maximum at 39kHz	Nominal at 100kHz	Nominal at 1MHz
22	60	150	100	100	80	3	4	15

Inductance at 31.25 KH mH/km	Dielectric Strength kVac / 1 min		Minimum Insulation Resistance GΩ x KM	Transfer Impedance mΩ/M		Maximum Installation Pulling N
	Conductor/Conductor	Conductor/Shield		100kHz	1MHz
0.7	2.5	2.5	5	15	10	120

KNX/EIB Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Solid Bare Copper Wire Conductor
Insulation	LSZH (Low Smoke Zero Halogen)
Tape	Plastic Foil
Screen	Aluminium / Polyester Tape (AL/PET)
Sheath	LSZH (Low Smoke Zero Halogen)
Drain Wire	Tinned Copper Wire

Dimensions

No. of Pairs	Diameter of Conductor mm	Nominal Overall Diameter mm	Nominal Weight kg/km
2 Pair (Quad)	0.8	6.2	64

Electrical Characteristics

Maximum (Conductor) Loop Resistance Ω/km	Maximum Insulation Resistance at 20°C MΩ x km	Maximum Capacitance Unbalance C, pF/100m	Maximum Mutual Capacitance nF/km
73.2	100	200	100

Profibus PA LSZH SWB Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	Solid PE (Polyethylene)
Bedding	PET (Polyester Tape)
Filler	Halogen Free Compound
Shield 1	AL/PET (Aluminium/Polyester Tape)
Shield 2	TCWB (Tinned Copper Wire Braid)
Inner Sheath	FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen)
Armour	GSWB (Galvanized Steel Wire Braid)
Outer Sheath	FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen)

Dimensions

No. of Pairs	Diameter of Conductor mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1	0.85	11	190

Electrical and Transmission Properties at 20°C

Maximum DC Resistance of Conductor	22ohms/km
Capacitance at 800Hz	60nF/km
Impedance at 1Mhz	80ohms (±10%)
Impedance 31.25kHz	100ohms (±10%)
Impedance at 39khz	100ohms (±10%)
Impedance (3/20Mhz)	150ohms (±10%)
Inductance at 31.25kHz	0.7mH/km
Nominal Attenuation at 1MHz	15dB/km
Maximum Attenuation at 39kHz	3dB/km
Nominal Attenuation at 100kHz	4dB/km
Maximum Propagation Delay Change (7.9/39kHz)	1.7µsec/km
Dielectric Strength (Conductor/Conductor)	2.5kVac/1min
Dielectric Strength (Conductor/Shield)	2.5kVac/1min
Minimum Insulation Resistance	5Gohms/km
Transfer Impedance at 100kHz	15mohms/km
Transfer Impedance at 1MHz	10mohms/km

Profibus DP LSZH SWB Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	Foam-Skin PE (Polyethylene)
Bedding	PET (Polyester Tape)
Filler	HFFR (Halogen Free Flame Retardant) Compound
Shield 1	AL/PET (Aluminium/Polyester Tape)
Shield 2	TCWB (Tinned Copper Wire Braid)
Inner Sheath	FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen)
Armour	GSWB (Galvanized Steel Wire Braid)
Outer Sheath	FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen)

Dimensions

No. of Pairs	Diameter of Conductor mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1	0.64	11.2	175

Electrical and Transmission Properties at 20°C

Maximum DC Resistance of Conductor	57.5ohms/km
Capacitance at 800Hz	29nF/km
Impedance (above 1Mhz)	150ohms (±10%)
Attenuation at 9.6kHz	0.3dB/100m
Attenuation at 38.4kHz	0.5dB/100m
Attenuation at 4MHz	2.1dB/100m
Attenuation at 16MHz	4dB/100m
Dielectric Strength (Conductor/Conductor)	1.5kVac/1min
Dielectric Strength (Conductor/Shield)	1.5kVac/1min
Minimum Insulation Resistance	5Gohms/km
Transfer Impedance at 10MHz	10mohms/m

Profinet PUR Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Stranded Copper Conductor
Insulation	Solid PE (Polyethylene)
Bedding	PET (Polyester Tape)
Inner Sheath	Halogen Free Material
Shield	AL/PET (Aluminium / Polyester Tape)
Overall Shield	TCWB (Tinned Copper Wire Braid)
Outer Sheath	HFFR (Halogen Free Flame Retardant) PUR Compound

Dimensions

No. of Cores	Nominal Overall Diameter mm	Nominal Weight kg/km
4	6.6	70

Electrical and Transmission Properties at 20°C

Maximum DC Resistance of Conductor	55ohms/km
Maximum Resistance Unbalance	3%
Mutual Capacitance at 1kHz	52nF/km
Maximum Capacitance Unbalance	1600pF/km
Nominal Velocity of Propagation at 100MHz	67%
Characteristic Impedance	100ohms (±15ohms)
Maximum Propagation Delay at 100MHz	510nsec/100m
Maximum Delay Skew at 100MHz	10nsec/100m
Minimum Insulation Resistance	5Gohms/km
Transfer Impedance at 100kHz	15mohms/m
Transfer Impedance at 1MHz	10mohms/m
Transfer Impedance at 10MHz	12mohms/m
Transfer Impedance at 30MHz	50mohms/m
Transfer Impedance at 100MHz	250mohms/m
Screening Attenuation	Above 60dB
Coupling Attenuation	Above 50dB

Frequency MHz	Attenuation dB/100m		Next dB		El-Fext dB/100m		ACR dB/100m		RL dB
	Standard Maximum	Typical	Standard Maximum	Typical	Standard Maximum	Typical	Standard Maximum	Typical	Standard Maximum	Typical
1	2.1	1.7	65.3	85	N/A	85	63.2	83.3	-	30
4	4	3.4	56.3	75	51.8	77	52.3	71.6	24.1	32
10	6.3	5.5	50.3	68	43.8	66	44	62.5	25	36
16	8	7.2	47.2	64	39.7	59	39.2	56.8	25	36
20	9	8.2	45.8	62	37.8	56	36.8	53.8	25	36
31.25	11.4	10.5	42.9	60	33.9	48	31.5	49.5	23.6	34
62.5	16.5	15.4	38.4	52	27.9	40	21.9	36.6	21.5	30
100	21.3	20	35.3	48	23.8	36	14	28	20.1	26

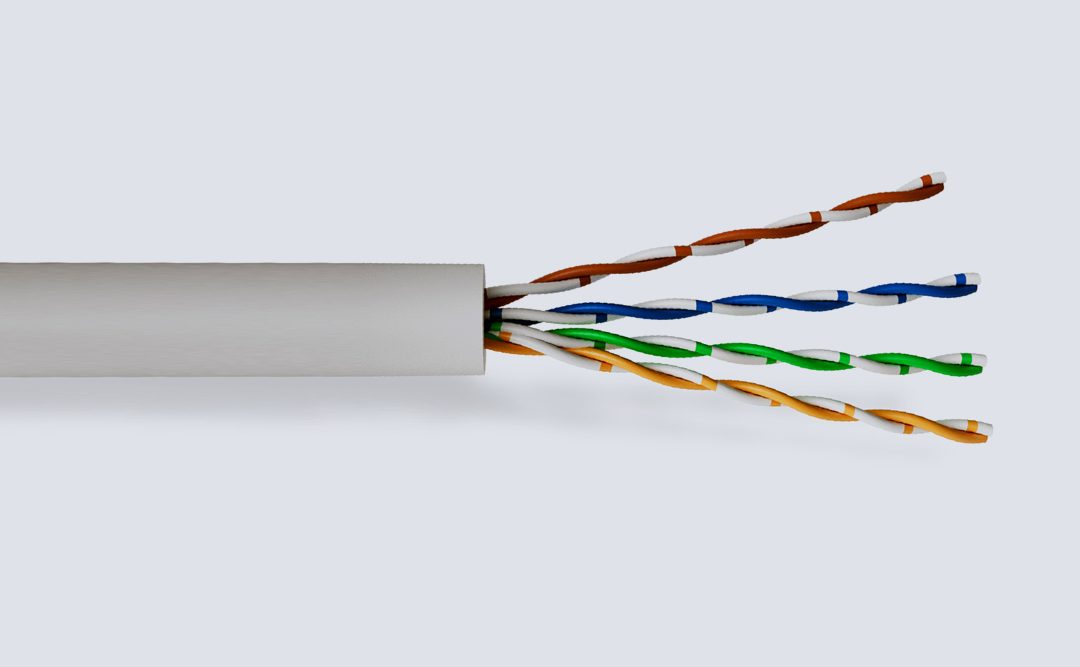

CAT 5E

Local Area Network Cable, Communication

Standards

UL/CSA Listed CM, CMR , CMP , LSOH
UL and ETL verified to ANSI/TIA/EIA- 568-A Category 5
ISO/IEC-11801
NEMA WC 63.1

Cable Uses

ANSI X3T9.5 TP-PMD (FDDI)
ATM PMD 155 Mbps
IEEE 802.3 Fast Ethernet
– 10 Base-T
– 100 Base-T4
– 100 Base-X
IEEE 802.5
– 4/16 Mbps Token Ring
IEEE 802.12
– Base-VG

Cable construction

Type		No. of Pairs	Conductor	Insulation Thickness		Outer Diameter		Jacket	Insulation
Horizontal Cable	CM	4	24AWG (0.51 mm)	0.20 mm	0.0079 inch	5.3 mm	0.21 inch	PVC	HDPE
Horizontal Cable	CMR	4	24AWG (0.51 mm)	0.20 mm	0.0079 inch	5.3 mm	0.21 inch	FRPVC	FRHDPE
Horizontal Cable	CMP	4	24AWG (0.51 mm)	0.20 mm	0.0079 inch	5.3 mm	0.21 inch	LS-PVC	TEFLON
Horizontal Cable	LSOH	4	24AWG (0.51 mm)	0.20 mm	0.0079 inch	5.3 mm	0.21 inch	LSOH	HDPE
Patch Cable		4	24AWG (7/0.20 mm)	0.20 mm	0.0079 inch	5.4 mm	0.21 inch	PVC	HDPE
Patch Cable		4	24AWG (7/0.20 mm)	0.20 mm	0.0079 inch	5.4 mm	0.21 inch	FRPVC	FRHDPE

Electrical properties

ISO/IEC 11801, TIA/EIA 568-A		Max. d.c. resistance	: 9.38Ω/100m (24AWG)
Impedance	: 100Ω±15%	Max. d.c. loop resistance	: 19.2Ω/100m
Max. d.c. resistance	: 14.8 Ω/100m (26AWG)	Min. d.c. insulation resistance	: 150MΩ/Km
Max. resistance unbalance	: 3% (5% for TIA/EIA)	Max. Propagation delay skew	: 30 ns/100m
Min. Propagation Velocity	: 0.65C
Max. Mutual capacitance	: 5.6nF/100m
Max. capacitance unbalance	: 3400/3300 pF/Km (ISO/IEC, TIA/EIA)

Frequency (MHz)	Attenuation Max. dB/100m	Pr-Pr NEXT Min. dB>=100m	Power Sum NEXT Min.dB dB>=100m	ACR Min . dB	Pr-Pr FEXT Min . dB>=100m	Power Sum ELFEXT Min.dB dB/100m
0.772	1.8	67.0	64.0	65.2	66.0	63.0
1	2.0	65.3	62.3	63.3	63.8	60.8
4	4.1	56.3	53.3	52.2	51.7	48.7
8	5.8	51.8	48.8	46.0	45.7	42.7
10	6.5	50.3	47.3	43.8	43.8	40.8
16	8.2	47.3	44.3	39.1	39.7	36.7
20	9.3	45.8	42.8	36.5	37.7	34.7
25	10.4	44.3	41.3	33.9	35.8	32.8
31.25	11.7	42.9	39.9	31.2	33.9	30.9
62.5	17.0	38.4	35.4	21.4	27.8	24.8
100	22.0	35.3	32.3	13.3	23.8	20.8

Our digital coaxial cables have many accessories. For more information, don’t hesitate to call us on 0121 508 6890 or get in touch via Contact Page.

`Bus Cable`

Bus Cable

Posted in Communication, Network Cable | Comments Off on Bus Cable

`Local Area Network Cable`

Posted in Communication, Network Cable | Comments Off on Local Area Network Cable

`AS-I BUS Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on AS-I BUS Cable

`Profinet Type A Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profinet Type A Cable

`Profibus PA PVC Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus PA PVC Cable

`Profibus PA FRNC-LSZH Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus PA FRNC-LSZH Cable

`KNX/EIB Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on KNX/EIB Cable

`Profibus PA LSZH SWB Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus PA LSZH SWB Cable

`Profibus DP LSZH SWB Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus DP LSZH SWB Cable

`Profinet PUR Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profinet PUR Cable

`CAT 5E`

Internal telephone cables.

Posted in Local Area Network Cable, Communication | Comments Off on CAT 5E

`Cat 5E 25 Pair U/UTP PE Duct Grade Cable`

  Posted in Local Area Network Cable, Communication, Network Cable  |  Comments Off on Cat 5E 25 Pair U/UTP PE Duct Grade Cable

`Cat 5E 25 Pair U/UTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E 25 Pair U/UTP LSZH Cable

`Cat 5E F/UTP PVC Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E F/UTP PVC Cable

`Profibus DP FC L2/FIP PVC Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus DP FC L2/FIP PVC Cable

`Profibus DP FC L2/FIP LSZH Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on Profibus DP FC L2/FIP LSZH Cable

`DeviceNet Thick FRNC LSZH Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on DeviceNet Thick FRNC LSZH Cable

`DeviceNet Thin LSZH Cable`

Posted in Communication, Network Cable, Bus Cable | Comments Off on DeviceNet Thin LSZH Cable

`Cat 5E U/UTP PVC Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E U/UTP PVC Cable

`Cat 5E U/UTP PE External Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E U/UTP PE External Cable

`Cat 5E F/UTP PE Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E F/UTP PE Cable

`Cat 5E F/UTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E F/UTP LSZH Cable

`Cat 5E PE F/UTP GSWB LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E PE F/UTP GSWB LSZH Cable

`Cat 5E U/UTP SWA LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E U/UTP SWA LSZH Cable

`Cat 5E U/UTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 5E U/UTP LSZH Cable

`Cat 6 F/UTP PE Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 6 F/UTP PE Cable

`Cat 6 U/UTP PE Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 6 U/UTP PE Cable

`Cat 6 U/UTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 6 U/UTP LSZH Cable

`Cat 6A U/FTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 6A U/FTP LSZH Cable

`Cat 6 F/UTP LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 6 F/UTP LSZH Cable

`Cat 7 S/FTP 4 Pair LSZH Cable`

Posted in Local Area Network Cable, Communication, Network Cable | Comments Off on Cat 7 S/FTP 4 Pair LSZH Cable

Cat 5E 25 Pair U/UTP PE Duct Grade Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Solid Copper Conductor
Insulation	PE (Polyethylene)
Filler	PE (Polyethylene)
Bedding	Mylar Shield
Rip Cord	Nylon
Sheath	PE (Polyethylene)

Dimensions

No. of Pairs	Nominal Diameter of Conductor mm	Nominal Thickness of Pair Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
25	0.51	0.91	12	154.4

Performance Characteristics

Frequency MHz	Attenuation (-dB/100m)(±30%)	Next Worst Pair (dB/100m)	RL (dB/100m)
1	2	52.24	16
4	4.1	45.04	18.4
8	5.8	41.44	19.6
10	6.5	40.24	20
16	8.2	37.84	20
20	9.3	36.64	20
25	10.4	35.44	19.44
31.25	11.7	34.32	18.88
62.5	17	30.72	17.2
100	22	28.24	16.08

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km
100(±15)	101.2

Cat 5E 25 Pair U/UTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	PE (Polyethylene)
Filler	PE (Polyethylene) filler core
Bedding	Mylar tape
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs	Nominal Diameter of Conductor mm²	Nominal Thickness of Pair Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
25	0.51	0.91	12	194

Performance Characteristics

Frequency MHz	Attenuation at (-dB/100m)(±15%)	Next (dB)Min	RL (dB)(±15%)
1	2	65.3	20
4	4.1	56.3	23
8	5.8	51.8	24.5
10	6.5	50.3	25
16	8.2	47.3	25
20	9.3	45.8	25
25	10.4	44.3	24.3
31.25	11.7	42.9	23.6
62.5	17	38.4	21.5
100	22	35.3	20.1

Electrical Characteristics

Impedance (1-100Hz) ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km
100(±15)	101.3

Cat 5E F/UTP PVC Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Screen	Aluminium Foil
Drain Wire	Tinned Copper
Sheath	PVC (Polyvinyl Chloride)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	1	6.2	14

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	95	5

Profibus DP FC L2/FIP PVC Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Solid Bare Copper Wire - 22/1AWG
Insulation	Foam-Skin Polyethylene
Bedding	PET (Polyester Tape)
Inner Sheath	PVC (Polyvinyl Chloride)
Shield	AL/PET (Aluminium / Polyester Tape)
Sheath	PVC (Polyvinyl Chloride)
Braid	Tinned Copper Wires, 60% Coverage

Dimensions

No. of Pairs	Nominal Cross Sectional Area mm²	Nominal Conductor Diameter mm	Nominal Insulation Diameter mm	Nominal Outer Diameter of Inner Sheath mm	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
1	0.35	0.64	2.5	5.5	7.9	76

Electrical Characteristics at 20°C

Max DC Loop Conductor Resistance Ω/km	Maximum DC Conductor Resistance Ω/km	Capacitance at 800Hz pF/km	Impedance (3÷20MHz) Ω(±10%)	Maximum Attenuation dB/km
				9.6kHz	38.4kHz	4kHz	16kHz
115	57.5	29	150	0.3	0.5	2.1	4

Dielectric Strength kVac / 1 min		Minimum Insulation Resistance GΩ x KM	Maximum Installation Pulling N
Conductor/Conductor	Conductor/Shield
1.5	1.5	5	100

Profibus DP FC L2/FIP LSZH Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Solid Bare Copper Wire - 22/1AWG
Insulation	Foam-Skin Polyethylene
Bedding	PET (Polyester Tape)
Inner Sheath	Flame Retardant Halogen Free Compound
Shield	AL/PET (Aluminium / Polyester Tape)
Sheath	FRNC-LSZH (Flame Retardant Non-Corrosive Low Smoke Zero Halogen) Compound
Braid	Tinned Copper Wires, 60% Coverage

Dimensions

No. of Pairs	Nominal Cross Sectional Area mm²	Nominal Conductor Diameter mm	Nominal Insulation Diameter mm	Nominal Outer Diameter of Inner Sheath mm	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
1	0.35	0.64	2.5	5.5	7.9	76

Electrical Characteristics at 20°C

Max DC Loop Conductor Resistance Ω/km	Maximum DC Conductor Resistance Ω/km	Capacitance at 800Hz pF/km	Impedance (3÷20MHz) Ω(±10%)	Maximum Attenuation dB/km
				9.6kHz	38.4kHz	4kHz	16kHz
115	57.5	29	150	0.3	0.5	2.1	4

Dielectric Strength kVac / 1 min		Minimum Insulation Resistance GΩ x KM	Maximum Installation Pulling N
Conductor/Conductor	Conductor/Shield
1.5	1.5	5	100

DeviceNet Thick FRNC LSZH Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Data Pair: Stranded Tinned Copper Wires - 18/19AWG (0.25mm²) Power Supply Pair: Stranded Tinned Copper Wires - 15/19AWG (0.35mm²)
Insulation	Data Pair: Foam-Skin Polyethylene Power Supply Pair: Solid Polyethylene
Bedding	PET (Polyester Tape)
Individual Pair Shield	AL/PET (Aluminium / Polyester Tape)
Overall Shield	TCWB (Tinned Copper Wire Braid)
Sheath	FRNC-LSZH (Flame Retardant Non-Corrosive Low Smoke Zero Halogen) Compound
Drain Wire	Tinned Copper

Dimensions

Nominal Cross Sectional Area of Data Pair Conductor mm²	Nominal Cross Sectional Area of Power Supply Pair Conductor mm²	Nominal Coverage of Wire Braid %	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
0.93	1.93	65	11.9	220

Electrical Characteristics at 20°C

DC Conductor Resistance Ω/km		Capacitance at 800Hz Data Pair pF/km	Impedance ≥ 1MHz Data Pair Ω	Attenuation dB/km			Dielectric Strength kVac/1min	Minimum Insulation Resistance GΩ x km	Transfer Impedance at 10MHz mΩ/m
Data	Power Supply Pair			at 125kHz	at 500kHz	at 1MHz
23.2	11.3	40	120	0.4	0.8	1.25	2	5	15

DeviceNet Thin LSZH Cable

Communication, Network Cable, Bus Cable

Cable Construction

Conductor	Data Pair: Class 2 Stranded Tinned Copper - 24/19AWG (0.25mm²) Power Pair: Class 2 Stranded Tinned Copper - 22/19AWG (0.35mm²)
Insulation	Pair 1 - Data: Foam-Skin PE (Polyethylene) Pair 2 - Power: Solid PE (Polyethylene)
Shield	AL/PET (Aluminium / Polyester Tape)
Overall Shield	TCWB (Tinned Copper Wire Braid)
Sheath	FRNC-LSZH (Flame Retardant Non-Corrosive Low Smoke Zero Halogen)
Drain Wire	Tinned Copper - 24AWG

Dimensions

Nominal Cross Sectional Area of Data Pair Conductor mm²	Nominal Cross Sectional Area of Power Supply Pair Conductor mm²	Nominal Coverage Metallic Braid %	Nominal Diameter of Outer Sheath mm	Nominal Weight kg/km
0.25	0.35	65	6.9	70

Electrical Characteristics at 20°C

DC Conductor Resistance Ω/km		Capacitance at 800Hz Data Pair pF/km	Impedance ≥ 1MHz Data Pair Ω	Attenuation dB/km			Dielectric Strength kVac/1min	Minimum Insulation Resistance GΩ x km	Transfer Impedance at 10MHz mΩ/m
Data	Power Supply Pair			at 125kHz	at 500kHz	at 1MHz
77	52	40	120	0.9	1.6	2.1	1.5	5	7

Cat 5E U/UTP PVC Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Rip Cord	Nylon
Sheath	PVC (Polyvinyl Chloride)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	0.87	4.9	10

Performance Characteristics

Frequency MHz	Attenuation 20°C dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	110	5

Cat 5E U/UTP PE External Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Sheath	PE (Polyethyene)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	0.86	5.1	10

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance ohms	Maximum Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	115	5

Cat 5E F/UTP PE Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Screen	Aluminium Foil
Drain Wire	Tinned Copper
Sheath	PE (Polyethylene)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm
4	1	6.3

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km	DC Resistance of Conductor Unbalance % max
100±15	9.5	5

Cat 5E F/UTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Screen	Aluminium Foil
Drain Wire	Tinned Copper
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	1	5.8	14

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	95	5

Cat 5E PE F/UTP GSWB LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	Solid PE (Polyethylene)
Screen	AL-Foil (Aluminium Foil)
Drain Wire	Tinned Copper
Sheath	LSZH (Low Smoke Zero Halogen)
Bedding	LSZH (Low Smoke Zero Halogen)
Braiding	GSWB (Galvanised Steel Wire Braid)

Dimensions

No. of Pairs (24 AWG)	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
4	1.04	9.4	124

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	ACR dB
1	2	65.3	23.1	63.8	60.8	63
4	4.1	56.3	23	51.7	48.7	51
8	5.8	51.8	24.5	45.7	42.7	45
10	6.5	50.3	25	43.8	40.8	43
16	8.2	47.3	25	39.7	36.7	37
20	9.3	45.8	25	37.7	34.7	35
25	10.23	44.3	24.2	35.8	32.8	32
31.25	11.71	42.9	23.3	33.9	30.9	29
62.5	17.25	38.4	20.7	27.8	24.8	19
100	22	35.3	19.24	23.8	20.8	9

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum Resistance of Conductor At 20ºC ohms/km
100±15	101.2

Cat 5E U/UTP SWA LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Inner Jacket 1	LSZH (Low Smoke Zero Halogen)
Inner Jacket 2	LSZH (Low Smoke Zero Halogen)
Armour	SWA (Steel Wire Armour)
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs	AWG	Strand Diameter mm	Nominal Overall Diameter mm
4	24	0.51	12.8

Performance Characteristics

Frequency MHz	RL dB	Insertion Loss dB	Next dB	ACR-N dB	ACR-F dB
1	19	4	60	56	58.6
4	19	4	54.8	50.8	44.6
8	19	5.4	50	44.6	40.6
10	19	6.1	48.5	42.4	38.6
16	19	7.7	45.2	37.5	34.5
20	19	8.7	43.7	35	32.6
25	18	9.7	42.1	32.4	30.7
31.25	17.1	10.9	40.5	29.6	28.7
62.5	14	15.8	35.7	19.8	22.7
100	12	20.4	32.3	11.9	18.6

Electrical Characteristics

Impedance ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km	Velocity Ratio %
100±15	<96.5	65

Cat 5E U/UTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	0.88	5	11

Performance Characteristics

Frequency MHz	Attenuation 20°C dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2	65.3	62.3	20	63.8	60.8	570
4	4.1	56.3	53.3	23	51.8	48.8	552
8	5.8	51.8	48.8	24.5	45.7	42.7	546.73
10	6.5	50.3	47.3	25	43.8	40.8	545.38
16	8.2	47.2	44.4	25	39.7	36.7	543
20	9.3	45.8	42.8	25	37.8	34.8	542.05
25	10.4	44.3	41.3	24.3	35.8	32.8	541.2
31.25	11.7	42.9	39.9	23.6	33.9	30.9	540.44
62.5	17	38.4	35.4	21.5	27.9	24.9	538.55
100	22	35.3	32.3	20.1	23.8	20.8	537.6

Electrical Characteristics

Impedance (1-100MHz) ohms	Maximum DC Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	110	5

Cat 6 F/UTP PE Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Screen	Aluminium Foil
Drain Wire	Tinned Copper
Sheath	LDPE (Low Density Polyethylene)

Dimensions

No. of Pairs (23 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm
4	1.09	7.4

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2.1	74.3	72.3	20	67.8	64.8	570
4	3.8	65.3	63.3	23	55.8	52.8	552
8	5.3	60.8	48.8	24.5	49.7	46.7	546.7
10	5.9	59.3	57.3	25	47.8	44.8	545.4
16	7.5	56.2	54.2	25	43.7	40.7	543
20	8.4	54.8	52.8	25	41.8	38.8	542.1
25	9.4	53.3	41.3	24.3	39.8	36.8	541.2
31.25	10.5	51.9	49.9	23.6	37.9	34.9	540.4
62.5	15	47.4	45.4	21.5	31.9	28.9	538.6
100	19.1	44.3	42.3	20.1	27.8	24.8	537.6
200	27.6	39.8	37.8	18	21.8	18.8	536.5
250	31.1	38.3	36.3	17.3	19.8	16.8	536.3

Electrical Characteristics

Velocity of Propagation %	Maximum DC Resistance of Conductor at 20ºC ohms/km	DC Resistance of Conductor Unbalance % max
68	93.8	5

Cat 6 U/UTP PE Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Sheath	PE (Polyethylene)

Dimensions

No. of Pairs (24 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	1.02	6.7	16

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2.03	74.3	72.3	20	67.8	64.8	570
4	3.78	65.3	63.3	23	55.8	52.8	552
8	5.32	60.8	58.8	24.5	49.7	46.7	546.73
10	5.95	59.3	57.3	25	47.8	44.8	545.38
16	7.55	56.2	54.2	25	43.7	40.7	543
20	8.47	54.8	52.8	25	41.8	38.8	542.05
25	9.51	53.3	51.3	24.3	39.8	36.8	541.2
31.25	10.67	51.9	49.9	23.6	37.9	34.9	540.44
62.5	15.38	47.7	45.4	21.5	31.9	28.9	538.55
100	19.8	44.3	42.3	20.1	27.8	24.8	537.6
200	28.98	39.8	37.8	18	21.8	18.8	536.54
250	32.85	38.3	36.3	17.3	19.8	16.8	536.27

Electrical Characteristics

Impedance ohms	Maximum Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	95	5

Cat 6 U/UTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs (23 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
4	1.035	6.1	16

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2.03	74.3	72.3	20	67.8	64.8	570
4	3.78	65.3	63.3	23	55.8	52.8	552
8	5.32	60.8	58.8	24.5	49.7	46.7	546.73
10	5.95	59.3	57.3	25	47.8	44.8	545.38
16	7.55	56.2	54.2	25	43.7	40.7	543
20	8.47	54.8	52.8	25	41.8	38.8	542.05
25	9.51	53.3	41.3	24.3	39.8	36.8	541.2
31.25	10.67	51.9	49.9	23.6	37.9	34.9	540.44
62.5	15.38	47.7	45.4	21.5	31.9	28.9	538.55
100	19.8	44.3	42.3	20.1	27.8	24.8	537.6
200	28.98	39.8	37.8	18	21.8	18.8	536.54
250	32.85	38.3	36.3	17.3	19.8	16.8	536.27

Electrical Characteristics

Impedance (1-250MHz) ohms	Maximum Resistance of Conductor At 20ºC ohms/km	Maximum Resistance Unbalance % max
100±15	95	5

Cat 6A U/FTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Class 1 Solid Copper Conductor
Insulation	Polyethylene
Drain Wire	Tinned Copper Wire of 26 AWG
Screen	Aluminium Polyester Tape covering each pair
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs (23 AWG)	Nominal Diameter Over Insulation mm	Nominal Overall Diameter mm	Nominal Weight kg/km
4	1.33	7.3	48

Performance Characteristics

Frequency MHz	Attenuation dB/100m	Next dB	PS - Next dB	RL dB	Elfext dB	PS - Elfext dB/100m	Phase Delay ns
1	2.1	74.3	72.3	20	68	65	570
4	3.8	65.3	63.3	23	56	53	552
8	5.3	60.8	58.8	24.5	49.9	46.9	546.7
10	5.9	59.3	57.3	25	48	45	545.4
16	7.5	56.2	54.2	25	43.9	40.9	543
20	8.4	54.8	52.8	25	42	39	542.1
25	9.4	53.3	51.3	24.3	40	37	541.2
31.25	10.5	51.9	49.9	23.6	38.1	35.1	540.4
62.5	15	47.4	45.4	21.5	32.1	29.1	538.6
100	19.1	44.3	42.3	20.1	28	25	537.6
200	27.6	39.8	37.8	18	22	19	536.5
250	31.1	38.3	36.3	17.3	20	17	536.3
300	34.3	37.1	35.1	16.8	18.5	15.5	536.1
500	45.3	33.8	31.8	15.2	14	11	535.6

Electrical Characteristics at 20°C

Delay Shew ns/100m	Velocity of Propagation %	Maximum Unbalanced-To-Ground Capacitance pf/100m	Maximum DC Resistance ohms/100m	Maximum DC Conductor Resistance Unbalance %
≤ 45	68	330	9.38	2

Cat 6 F/UTP LSZH Cable

Local Area Network Cable, Communication, Network Cable

Cable Construction

Conductor	Solid Bare Copper Conductor
Insulation	HDPE (High Density Polyethylene)
Drain Wire	Tinned Copper
Screen	Mylar + Aluminium Foil/Mylar
Sheath	LSZH (Low Smoke Zero Halogen)

Dimensions

No. of Pairs (23 AWG)	Nominal Diameter of Conductor mm		Nominal Diameter Over Insulation mm	Nominal Thickness of Sheath mm	Nominal Overall Diameter mm	Nominal Weight kg/305m box
	+0.005 Up	-0.005 Down
4	0.565		1.12	0.55	7.4	14

Physical Properties of Sheath

Before Ageing		Ageing Period °C x hrs	After Ageing Period
Tensile Strength (Mpa)	Elongation (%)		Tensile Strength (Mpa)	Elongation (%)
≥ 10	≥ 125	100°Cx24hx7d	≥ 8	≥ 100

Performance Characteristics

Frequency MHz	Attenuation dB	RL dB	Next dB	Delay ns	PS - Next dB	Elfext dB	PS - Elfext dB/100m
1	-	20	74.3	570	72.3	68	65
4	3.78	23	65.3	552	63.3	56	53
8	5.32	24.5	60.8	546.73	58.7	49.9	46.9
10	5.95	25	59.3	545.38	57.3	48	45
16	7.55	25	56.2	543	54.2	43.9	40.9
20	8.47	25	54.8	542.05	52.8	42	39
25	9.51	24.3	53.3	541.2	51.3	40	37
31.25	10.67	23.6	52	540.44	49.9	38.1	35.1
62.5	15.38	21.5	47.4	538.55	45.4	32.1	29.1
100	19.8	20.1	44.3	537.6	42.3	28	25
200	28.98	18	39.8	536.54	37.8	22	19
250	32.85	17.3	38.3	536.27	36.3	20	17

Electrical Characteristics at 20°C

Impedance (1-250MHz) Ω	Delay Shew (1-250MHz) Ω	Maximum Capacitance (Unbalanced-To-Ground) ns/100m	Maximum DC Resistance at 20°C Ω/100m	Maximum DC Conductor Resistance Unbalance %
100±15	≤ 45	330	9.5	5

« Older Entries

Cables Include:

Cables Include:

Standards

Cable Uses

Search Cables Britain

Get In Touch

Cable Types

Recent Posts
