Connection Box

Combustion behaviour

UL 94 V-0, self-extinguishing
EN 60695-11-10 / IEC 60695-11-10
VDE 0471 part 11-10
CSA C 22.2

Ordering Information

Interconnection Box CBO 20/0 Art.-no.: G00534 (to link two SEC 20 sensor cables)
Connection Box CBO 20/1 Art.-no.: G00535 (to link a SEC 20 sensor cable with a CC 20 connection cable)
Connection Box CBO 20/3 Art.-no.: G00536 (to link up to three SEC 20 sensor cables with up to two CC 20 connection cables)
Connection Box CBO 20-ESA Art.-no.: G00538 (to link up to eight external sensors ESA with up to two CC 20 connection cables)
Connection module MOD 4 Art.-no.: M00355 (to link up to four external sensors ESA, max. two connection modules MOD 4 can be connected per CBO 20-ESA)

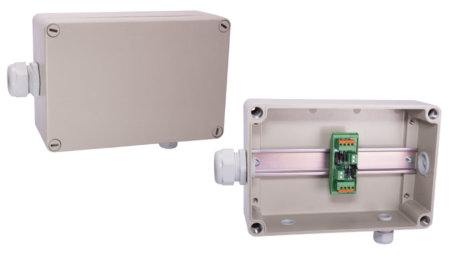

Connection box CBO 20

Box for the connection of one sensor cable SEC 20, incl. connection module CCM with over-voltage-protection, material: glasfibre reinforced polycarbonat, IP 66

General Data

Case material: Polyester, glass-fibre reinforced, halogen-free
Internals: Mounting sockets with M4 / M6 threaded inserts in enclosure base with 35 mm DIN rail
Ingress protection: IP 66 according to EN 60529:2000
Finish: RAL 7032 grey, surface resistance > 109 Ω
Gasket: Chloroprene (CR) string gasket
Mounting: Mounting screws outside enclosure interior
Operating temperature: -30°C … +90°C
Cable glands: Metric, with O-Ring
Weight: 1,6 … 1,8 kg (depending on configuration)
Dimensions: 244,0 x164,0 x 101,0 mm, without cable glands (w x h x d)

Scope of Delivery

CBO 20/0, including mounting materials, metric cable glands and connection materials
CBO 20/1, including one connection module CCM 3000_D, mounting materials, metric cable glands and connection materials
CBO 20/3, including two connection modules CCM 3000, mounting materials, metric cable glands and connection materials
CBO 20-ESA, including mounting materials, metric cable glands and connection material
