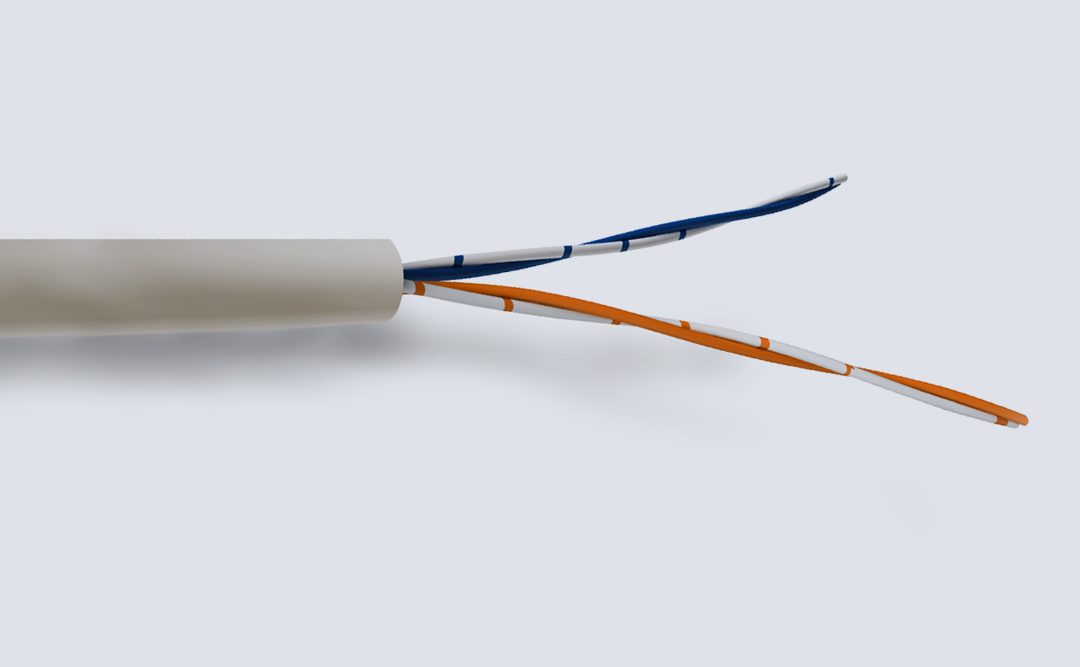

The following range of multipair internal telephone cables are manufactured in accordance with BT type CW 1308.

They are constructed from a 0.5mm tinned copper conductor, which is PVC insulated, these cores are twisted into pairs and the required number of pairs are then laid up in either layers for cables containing up to and including 25 pairs, or in units for items of 32 pairs and above. The pairs are colour coded for ease of identification. An earth conductor of 1.38mm PVC insulated plain copper is included where shown. The cables are either black or white with a PVC or LSOH outer sheath (CW1308B) For colour code details please refer to table below. Foil shielded versions are available in certain pair sizes.

Cable construction
No of Pairs (mm)ConstructionMax O.D. (mm)No Of PairsConstructionMax O.D.
2L3.620 + Earth1 x 20U12.0
3L4.525L11.4
4L5.825 + EarthL12.0
6L6.8# 32 + Earth2 x 16U16.0
10L8.340 + Earth2 x 40U15.0
10 + Earth1/2 x 20U8.650 + Earth21/2 x 20U17.5
12L9.160 + Earth3 x 20U20.0
12 + EarthL9.580 + Earth4 x 20U22.5
15L9.8100 + Earth5 x 20U24.0
*20L10.7160 + Earth8 x 20U30.3

CONSTRUCTION
L = Layer Construction
U = Unit Construction
* = This item contains an additional conductor coloured violet.
# = Each unit in this item is divided into sub units, the first containing elements 1-4 and 6-9, the second 11-14 and 16-19.

Electrical characteristics
Minimum Insulation Resistance @ 20 C50 MEGA OHMS/KM
Maximum Conductor Resistance @ 20 C97.8 OHMS/KM
Maximum Capacitance Unbalance500pf
Colour Coding Table
Pair No.Colour Of Insulation
A - Wire
Colour Of Insulation
B - Wire
1 YellowWHITE-BlueBLUE-White
2 YellowWHITE-OrangeORANGE-White
3 YellowWHITE-GreenGREEN-White
4 YellowWHITE-BrownBROWN-White
5 YellowWHITE-GreyGREY-White
6 VioletRED-BlueBLUE-Red
7 VioletRED-OrangeORANGE-Red
8 VioletRED-GreenGREEN-Red
9 VioletRED-BrownBROWN-Red
10 VioletRED-GreyGREY-Red
11 PinkBLACK-BlueBLUE-Black
12 PinkBLACK-OrangeORANGE-Black
13 PinkBLACK-GreenGREEN-Black
14 PinkBLACK-BrownBROWN-Black
15 PinkBLACK-GreyGREY-Black
16 YellowYELLOW-BlueBLUE-Yellow
17 YellowYELLOW-OrangeORANGE-Yellow
18 YellowYELLOW-GreenGREEN-Yellow
19 YellowYELLOW-BrownBROWN-Yellow
20 YellowYELLOW-GreyGREY-Yellow
21 VioletVIOLET-BlueBLUE-Violet
22 VioletVIOLET-OrangeORANGE-violet
23 VioletVIOLET-GreenGREEN-Violet
24 VioletVIOLET-BrownBROWN-Violet
25 VioletVIOLET-GreyGREY-Violet
26 PinkPINK-BlueBLUE-Pink
27 PinkPINK-OrangeORANGE-Pink
28 PinkPINK-GreenGREEN-Pink
29 PinkPINK-BrownBROWN-Pink
30 PinkPINK-GreyGREY-Pink
