Data Enhanced – 300/500 V

Individual and overall screen.
Fire resistant, flame and fire retardant, low smoke and zero halogen.

Fire Standards

Our ‘Standard’ and ’Enhanced’ Fire cables are manufactured in the European Union in accordance with British Standards BS7629-1, BS EN 50200 PH30 / PH60 / PH120, BS7846 and BS6387 CWZ PH120. They are BASEC-approved and hold LPCB-certification. For more information, please visit Fire Standards

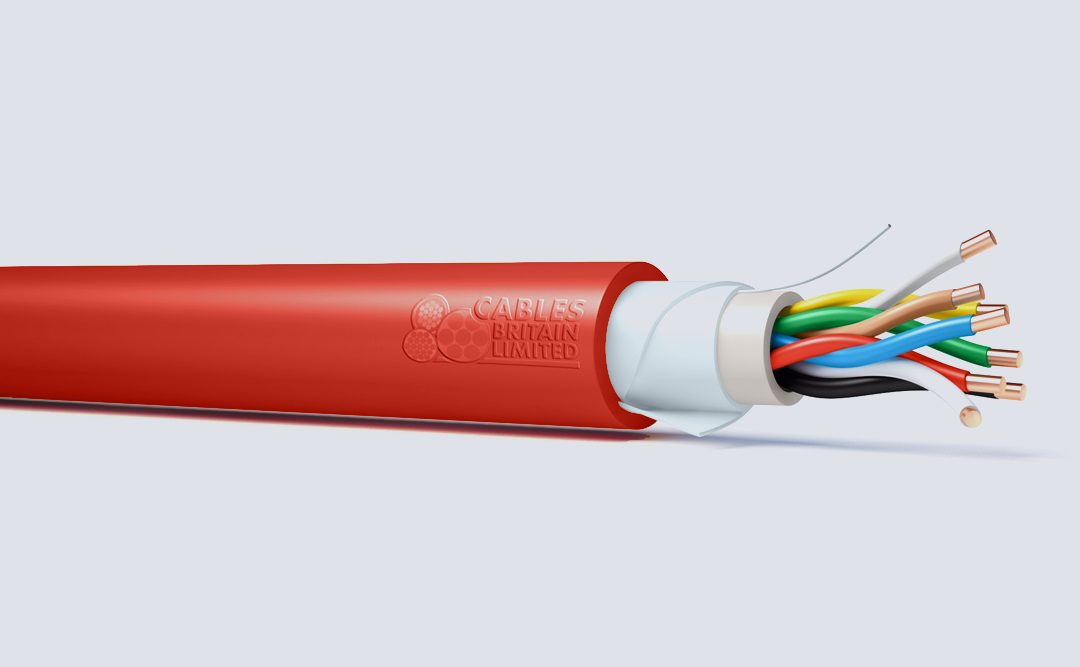

Cable construction

ConductorSolid plain annealed copper wire
InsulationHigh performance fire resistant silicone rubber, type EI2
Insulation ScreenMica tape
Primary cablingThe insulated cores are twisted to form pairs
Metallic ScreenAluminium backed polyester tape helically applied with 25% overlap, aluminium in continuous contact with tinned copper drain wire, size 0.5 mm2 (7x0.3 mm)
SeparatorPolyester tape helically applied with 25% overlap
SheathLSZH thermoplastic compound, flame retardant, abrasion resistant, type LTS3
Mechanical and installation characteristics
Operating temperature for the cable (after installation)-40°C ÷ +90°C
Operating temperature (only insulation)-40°C ÷ +180°C (max +200 °C)

General Standards

For the conductorsBS EN 60228 class 1 (solid) or class 2 (stranded)
For the insulation materialBS EN 50363-1
For the sheath materialBS 7655-6.1
Electrical characteristics
Voltage rating300/500 V r.m.s.
2000 V r.m.s. for 1’ (core – screen)
Test for insulation faults7000 V r.m.s/H.F.
Conductors resistance
(Generally to EN 50288-7 for multi-pair cables an additional 2%
of the maximum resistance, to EN 60228, has been allowed)
≤ 36.7 Ohm/km (@ 20°C in d.c.) for 0.5 mm2
≤ 12.3 Ohm/km (@ 20°C in d.c.) for 1.5 mm2
Insulation resistance≥ 300 Mohmxkm (at 20°C)
Capacitance nom.
Short circuit temperature≥ 250 °C
Behaviour under fire conditions
Fire resistanceto BS 6387 cat.C (3 h at 950 °C)
to BS 6387 cat.W (15 mins at 650 °C plus 15 mins with water spray)
to BS 6387 cat.Z (15 mins at 950 °C with mechanical shock)
to BS EN 50200 (120 mins at 850°C with mechanical shock)
Fire retardant cat.Cto BS EN 50266-2-4, IEC 60332-3-24
Flame retardantto BS EN 50265-2-1, IEC 60332-1-2
Corrosive acid gasto BS EN 50267-2-1, IEC 60754 Part 1 (≤0.5%)
to BS EN 50267-2-1, IEC 60754 Part 2
pH > 4.3 , Conductivity < 10 microS/mm
Smoke densityto BS EN 50268-2 (3 metre cube test), IEC 61034-2
Light transmittance ≥ 60%
No of Pairs x Size (mm2)Nom. insulation thickness (mm)Nom. outer sheath thickness (mm)Nom. outer diameter +/- 10% (mm)Net Weight (Kg/Km)
2x2x0.50.601.110.6143
2x2x1.50.701.113.0196

Accessories are available upon request, please contact a member of our sales team 0121 508 6890
