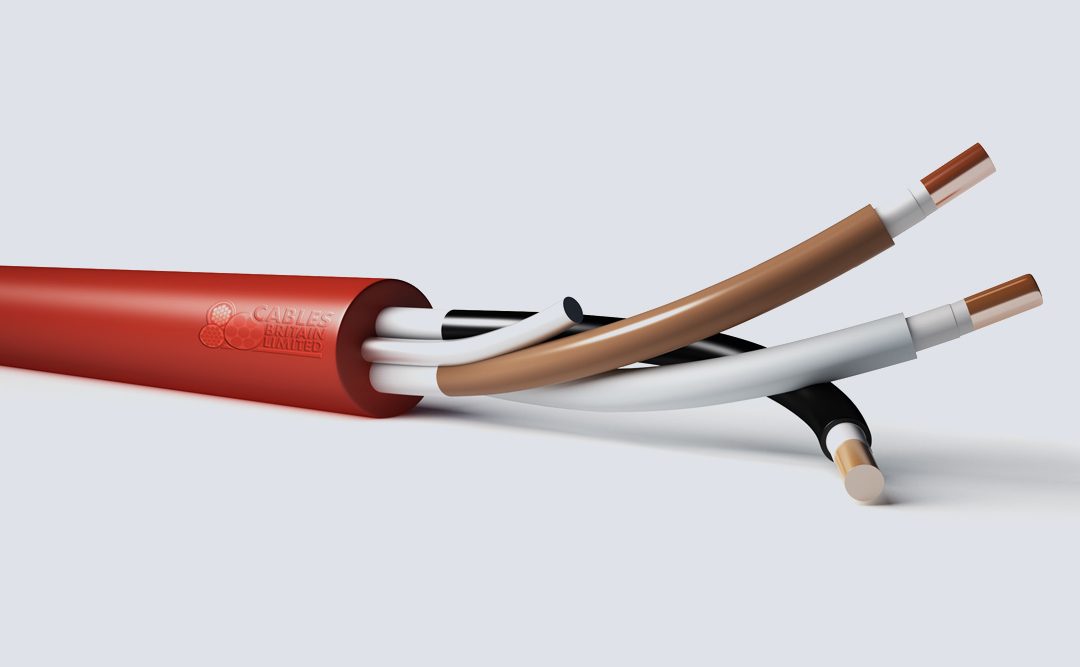

SR 114E – 300/500 V (solid)
BS 5839-1:2017 Clause 26.2e

BS EN 50200:2006 (PH 120)
830°C fire and mechanical shocks
BS 8434-2:2003 +A2:2009 930°C – 120 min. (60 min.
fire and mechanical shocks + 60 min. fire mechanical
shocks and water spray)
BS 6387:2013
Cat. C fire @ 950°C – 180 min
Cat. W fire and water @ 650°C – 15 + 15 min.
Cat. Z fire and mechanical shocks
@ 950°C – 15 min.fire

Cable Uses

  • Fire Fighting Systems
  • Hotels
  • Theatres and cinemas
  • Museums
  • Hospitals
  • Shopping centres
  • Undergrounds and Tunnels
  • Airports
  • Railway Stations
  • High-rise buildings
  • Data Communication Centres
  • Public Address Systems
  • Traffic Control Systems

Fire Standards

Our ‘Standard’ and ’Enhanced’ Fire cables are manufactured in the European Union in accordance with British Standards BS7629-1, BS EN 50200 PH30 / PH60 / PH120, BS7846 and BS6387 CWZ PH120. They are BASEC-approved and hold LPCB-certification. For more information, please visit Fire Standards

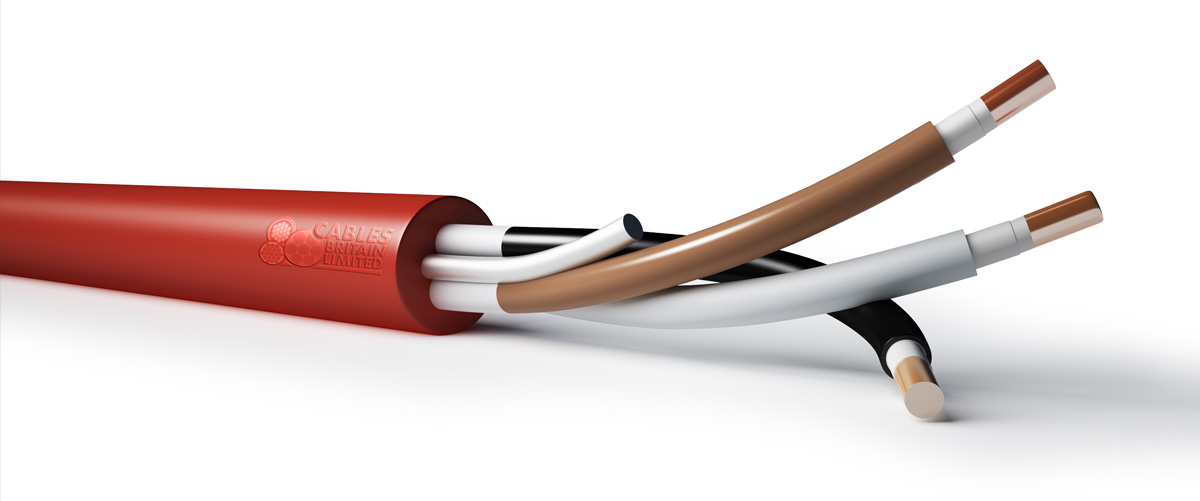

Cable construction
ConductorSolid plain annealed copper wires
InsulationFire Resistant Silicone Rubber, Type EI2
Metallic ScreenAluminium backed polyester tape helically applied with 125% coverage, aluminium in continuous contact with the uninsulated earth conductor for 2,3,4 core) or drain wire (for 7,12 or 19 core)
SeparatorPolyester tape helically applied with 25% overlap
ArmourOptions available SWA (Steel Wire Armour) GSWB (Galvanised Steel Wire Braid)
SheathLSZH thermoplastic compound, flame retardant, abrasion resistant, type LTS3
Mechanical and installation characteristics
Operating temperature for the cable (after installation)-40°C ÷ +90°C
Operating temperature (only insulation)-40°C ÷ +180°C (max +200 °C)
General standards
For the constructionBS 7629-1
For the conductorsBS EN 60228 class 1 (solid)
For the insulation materialBS EN 50363-1
For the sheath materialBS 7655-6.1
Electrical characteristics
Voltage rating300/500 V r.m.s.
2000 V r.m.s. for 1’ (core – screen)
Test for insulation faults7000 V r.m.s/H.F.
Conductors resistance
(Generally to EN 50288-7 for multi-pair cables an additional 2%
of the maximum resistance, to EN 60228, has been allowed)
≤ 36.7 Ohm/km (@ 20°C in d.c.) for 0.5 mm2
≤ 12.3 Ohm/km (@ 20°C in d.c.) for 1.5 mm2
Insulation resistance≥ 300 Mohmxkm (at 20°C)
Capacitance nom.
- 1.0 mm2≤ 100 pF/mt (core – core)
≤ 170 pF/mt (core – screen)
- 1.5 mm2≤ 110 pF/mt (core – core)
≤ 190 pF/mt (core – screen)
- 2.5 mm2≤ 130 pF/mt (core – core)
≤ 220 pF/mt (core – screen)
- 4.0 mm2≤ 160 pF/mt (core – core)
≤ 270 pF/mt (core – screen)
Short circuit temperature≥ 250 °C
Behaviour under fire conditions
Fire resistanceto BS 6387 cat.C (3 h at 950 °C)
to BS 6387 cat.W (15 mins at 650 °C plus 15 mins with water spray)
to BS 6387 cat.Z (15 mins at 950 °C with mechanical shock)
to BS EN 50200 (120 mins at 850°C with mechanical shock)
Fire retardant cat.Cto BS EN 50266-2-4, IEC 60332-3-24
Flame retardantto BS EN 50265-2-1, IEC 60332-1-2
Corrosive acid gasto BS EN 50267-2-1, IEC 60754 Part 1 (≤0.5%)
to BS EN 50267-2-1, IEC 60754 Part 2
pH > 4.3 , Conductivity < 10 microS/mm
Smoke densityto BS EN 50268-2 (3 metre cube test), IEC 61034-2
Light transmittance ≥ 60%
Cable configuration
N° of pairs
x
Size
[mm2]
Size of cond. and earth wireNom. insulation
thickness
[mm]
Nom. outer sheath
thickness
[mm]
Nom. outer diameter
[mm]
Net Weight
[kg/km]
2x1.01/1.130.600.97.985
3x1.01/1.130.600.98.4105
4x1.01/1.130.601.09.3125
7x1.01/1.1310.601.010.9175
2x1.51/1.380.700.98.8105
3x1.51/1.380.700.99.3130
4x1.51/1.380.701.010.3165
7x1.51/1.3810.701.112.1230
12x1.51/1.3810.701.216.0380
19x1.51/1.3810.701.319.0590
2x2.51/1.750.801.010.2150
3x2.51/1.750.801.010.8
190
4x2.51/1.750.801.112.0240
2x4.07/0.850.801.112.2220
3x4.07/0.850.801.113.0280
4x4.07/0.850.801.214.4350
Accessories
Cable Size (mm)Cable CoresP Clips SizeRSFJ Double Clips SizeGlands

Certified to Low Voltage Directive (LVD) 2006/95/EC

Contains NO HALOGENS essential for use with LSZH Fire Cable.

Available in the following colours: black, red & white with any other colour available for manufacture.

“AC”clips packed in 100`s “rsfj”double clips packed in 50`s glands packed in 100`s

Prefix to product code for ordering purposes.

Carriage paid on all orders over £250.00 nett value.

Flame retardant glands red also available on request
Locknuts for glands charged extra m20 locknuts
30150 the recommended stripping tool
T3964 cable cutter for o.D. 50.0mm or 14.0mm max
1.02+EAC7302251
1.52+EAC8342251
2.52+EAC11382251
4.02+EAC12362252
1.03+EAC9342251
1.53+EAC9342251
2.53+EAC11422252
4.03+EAC13TBA254
1.04+EAC9382251
1.54+EAC9382251
2.54+EAC12422252
4.04+EAC14TBA254
1.07+EAC11422251
1.57+EAC12422252
2.57+EAC13TBA254
1.512+EAC14632254
2.512+EAC20TBA255
1.519+EAC16702255
2.519+EAC23TBATBA
