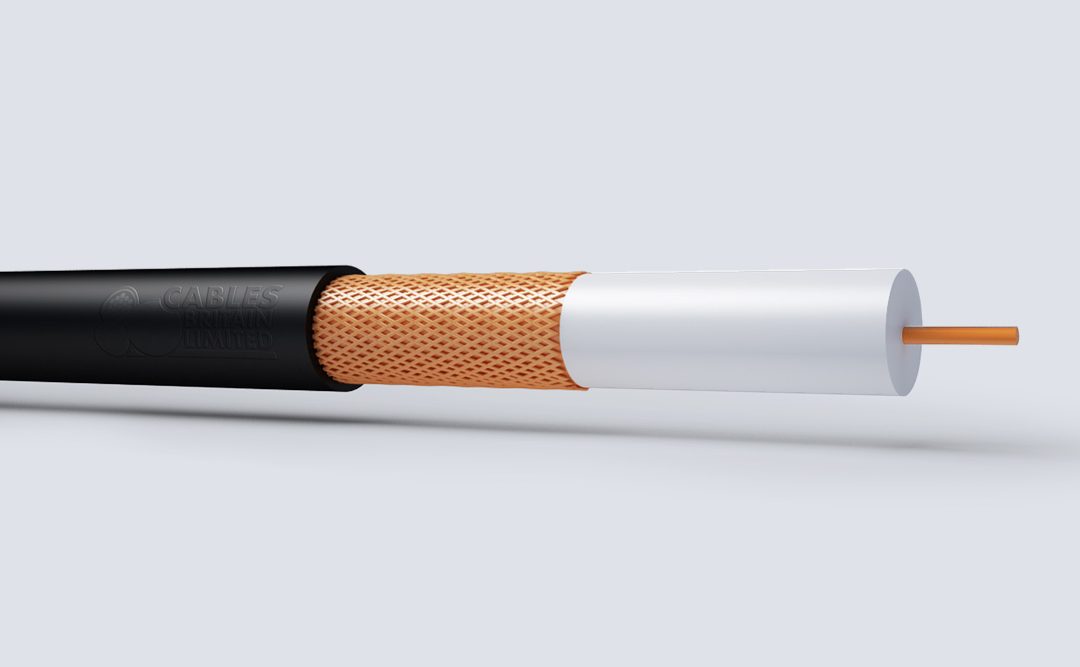

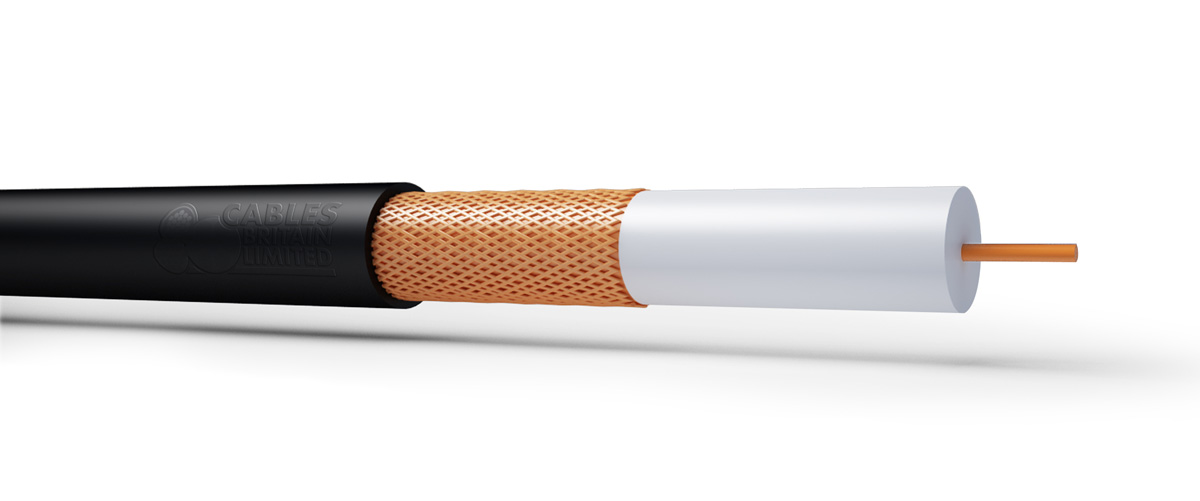

High quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.

A broad selection available in Duct, Grade or LSZH versions.

Conductor

RG6CCS (Copper Clad Steel)
RG11CCS (Copper Clad Steel)
RG58TCW (Tinned Copper Wire)
RG59CCS (Copper Clad Steel)
RG59 SHOTGUN LSZH CCACCA (Copper Clad Aluminium)
RG179TCW (Tinned Copper Wire)
RG213 PVCPCW (Copper Wire)
RG213 LSZHPCW (Copper Wire)
Dielectric
RG6FPE (Foam Polyethylene)
RG11FPE (Foam Polyethylene)
RG58PE (Polyethylene)
RG59PE (Polyethylene)
RG59 SHOTGUN LSZH CCAPE (Polyethylene)
RG179FPE (Foam Polyethylene)
RG213 PVCPE (Polyethylene)
RG213 LSZHPE (Polyethylene)
Shield
RG6Aluminium foil
Braiding
RG6CCA (Copper Clad Aluminium)
RG58TCWB (Tinned Copper Wire Braid)
RG59CCA (Copper Clad Aluminium)

Sheath

RG6PVC (Polyvinyl Chloride)
RG11PVC (Polyvinyl Chloride)
RG58PVC (Polyvinyl Chloride)
RG59PVC (Polyvinyl Chloride)
RG59 SHOTGUN LSZH CCALSZH (Low Smoke Zero
Halogen)
RG179PVC (Polyvinyl Chloride)
RG213PVC (Polyvinyl Chloride)
RG213 LSZHLSZH (Low Smoke Zero Halogen)
Dimensions
COAXIAL
CABLE
NO. OF
STRANDS
NOMINAL DIAMETER
OF STRANDS
mm
NOMINAL OVERALL
DIAMETER OF
DIELECTRIC
mm
NOMINAL OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
RG611.024.66.637
RG1170.47.2410.1152
RG5910.583.76.1552
RG59 SHOTGUN LSZH CCA10.583.76.1X12.491
RG17910.361.653.0515
RG213 PVC70.757.2410.357
RG213 LSZH70.757.2510.357
RG58190.182.954.95-

Characteristics

Voltage Rating30V
Temperature Rating-20°C to +75ºC
Sheath colourBlack
URM70: Black White.
Electrical characteristics
Coaxial cableNominal capacitance pf/mImpedance ohmsVelocity ratio %
RG6547585
RG11547585
RG59727566
RG59 SHOTGUN LSZH CCA707566.6
RG179547582
RG213PVC1015081
RG213LSZH1015081
RG58975060

Our digital coaxial cables have many accessories. For more information, don’t hesitate to call us on 0121 508 6890 or get in touch via Contact Page.
